3M Bus Bar Tubing BBI 4A 20ft - 5.43
3M Bus Bar Tubing BBI 4A 20ft - 5.43

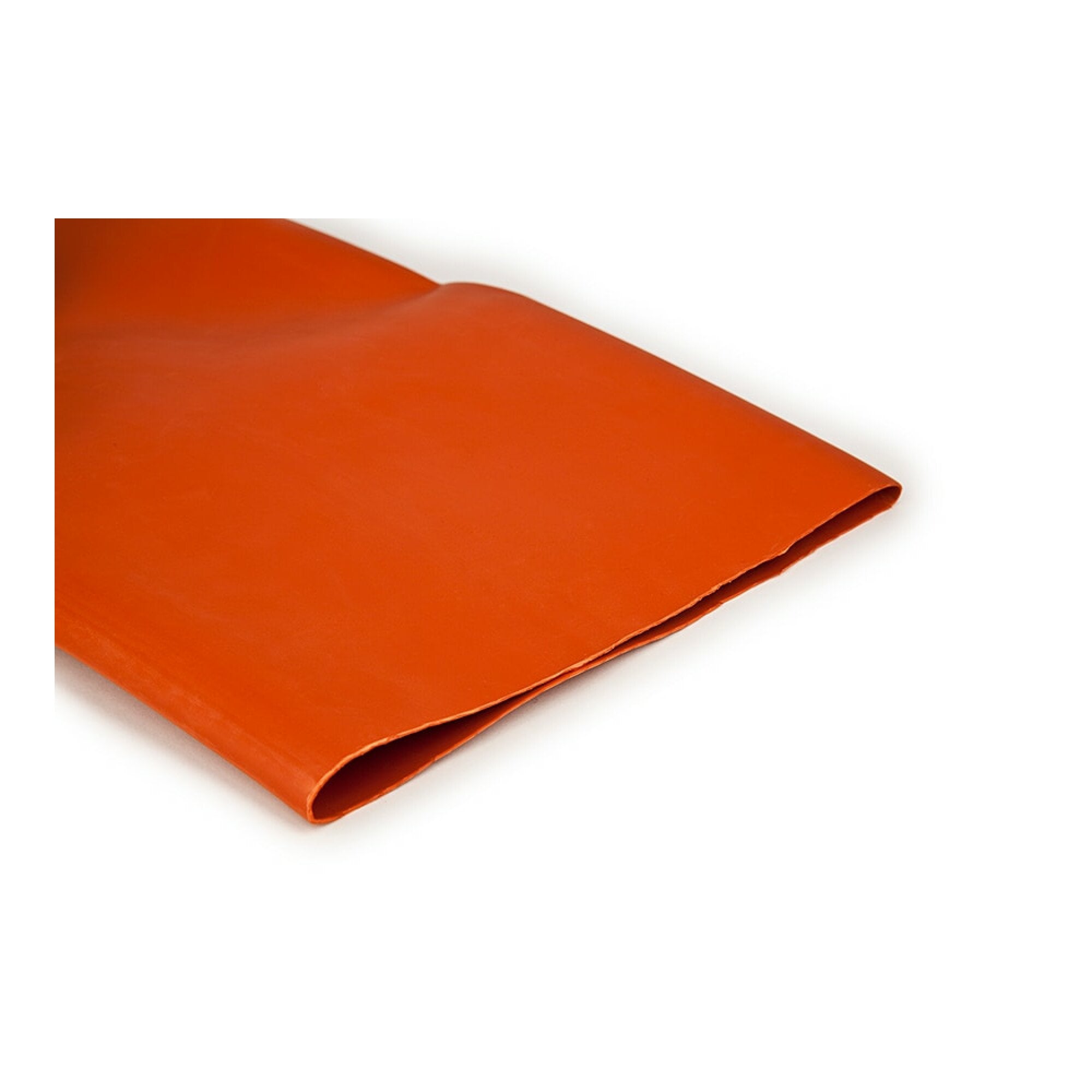

3M Bus Bar Tubing BBI 4A 20ft - 5.43" to 8.86" Outer Diameter - Electrical Insulation Sleeving for Power Distribution & Industrial Applications

$269.69 $490.36 -45%

Free shipping on all orders over $50

7-15 days international

10 people viewing this product right now!

30-day free returns

Secure checkout

73185698

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

DESCRIPTION

General Information
Brand
3M™
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Product Type
Bus Bar Tubing
Splice Type
Heat Shrink
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Expanded Wall Thickness
0.043 in
Inner Diameter After Shrink (Imperial)
5.43 in
Inner Diameter After Shrink (Metric)
137.9 mm
Inner Diameter Before Shrink (Imperial)
8.86 in
Inner Diameter Before Shrink (Metric)
225 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Outside Diameter (Bar Circumference)
5.43 - 8.86 inch
Overall Length (Imperial)
20 ft
Overall Length (Metric)
6.1 m
Recovered Wall Thickness
0.113 in
Rectangular Size
(2-1/2 x 3/8) to (4 x 3/4) Inch (for 5 kV, 8 kV, 15 kV, 25 kV)
Relaxed Tube Length (Metric)
6.1 m
Round Size (Diameter)
See Sizing Chart on Data Sheet
Square Size
2 x 2 Inch (for 5 kV, 8 kV, 15 kV)
Voltage
15 kV
Operating Temperature Celsius
-55 °C to 110 °C
Overall Length Imperial
20.0
Other Details
Flame Retardant
Yes
Halogen Free
No
Maximum Recovered Tubing I. D.
1.67 in
Minimum Expanded Tubing I. D.
4.35 in
Shrink Ratio
1.5 : 1
Units Per Case
1.0
With Inner Glue
No
Material and Composition
Material
Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Orange
Shape
Rectangular
Certifications and Standards
UL Approval
No

YOU MAY ALSO LIKE

-45% Off
3M BBI 3A Bus Bar Tubing 20ft - 3.28
3M BBI 3A Bus Bar Tubing 20ft - 3.28" to 5.57" Outer Diameter for Electrical Insulation | Ideal for Power Distribution & Electrical Panel Protection
$241.34 $438.81
-45% Off

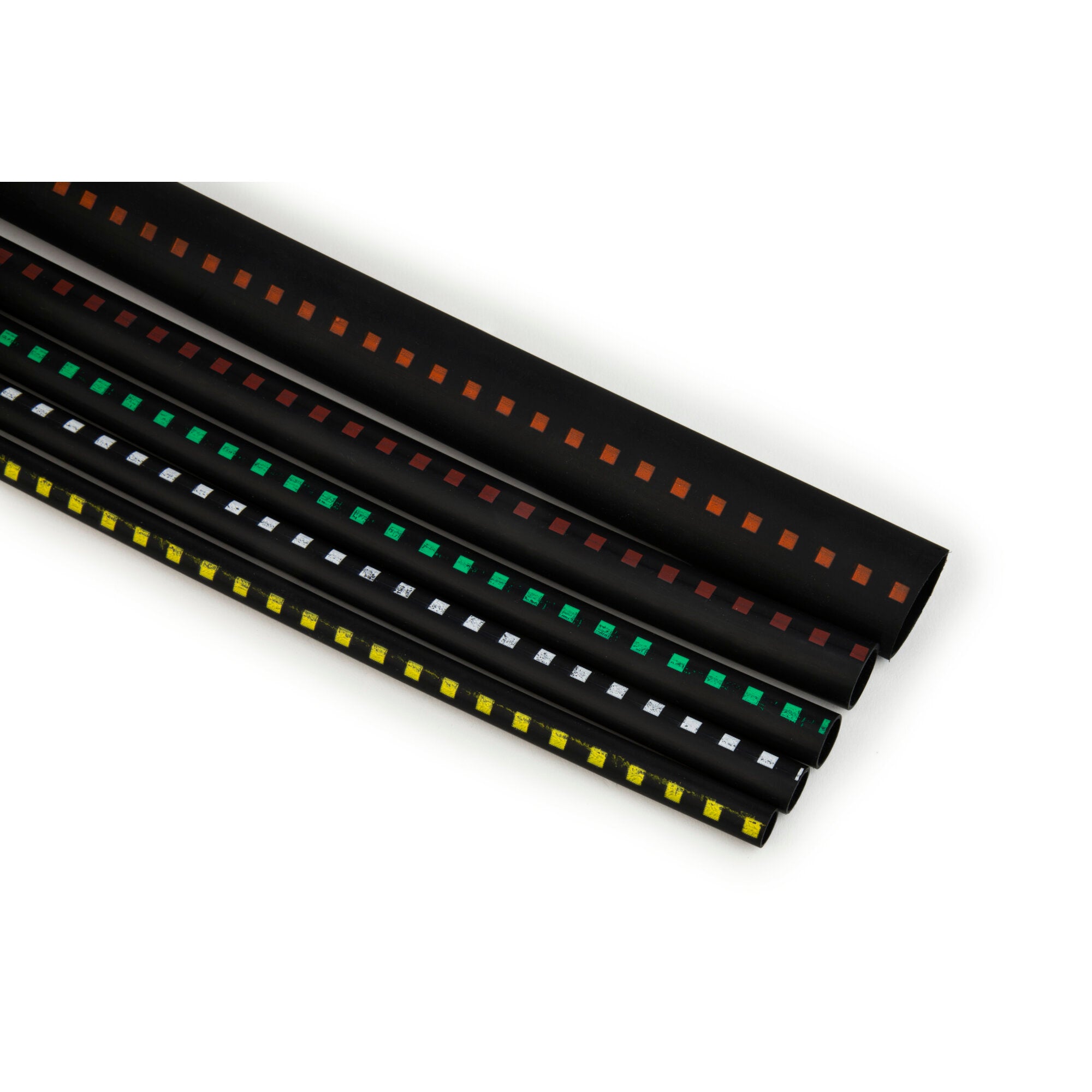

3M Automotive Heat Shrink Tube SMS 450 - Black with Red Squares (1 inch) - High Temperature Resistant Wire Protection for Car, Marine & Electrical Wiring
